I designed this circuit board 9 years ago. With my first electronic design company HardElettroSoft I wanted to build a breakout board for the AriaG25 from Acmesystems S.r.l..

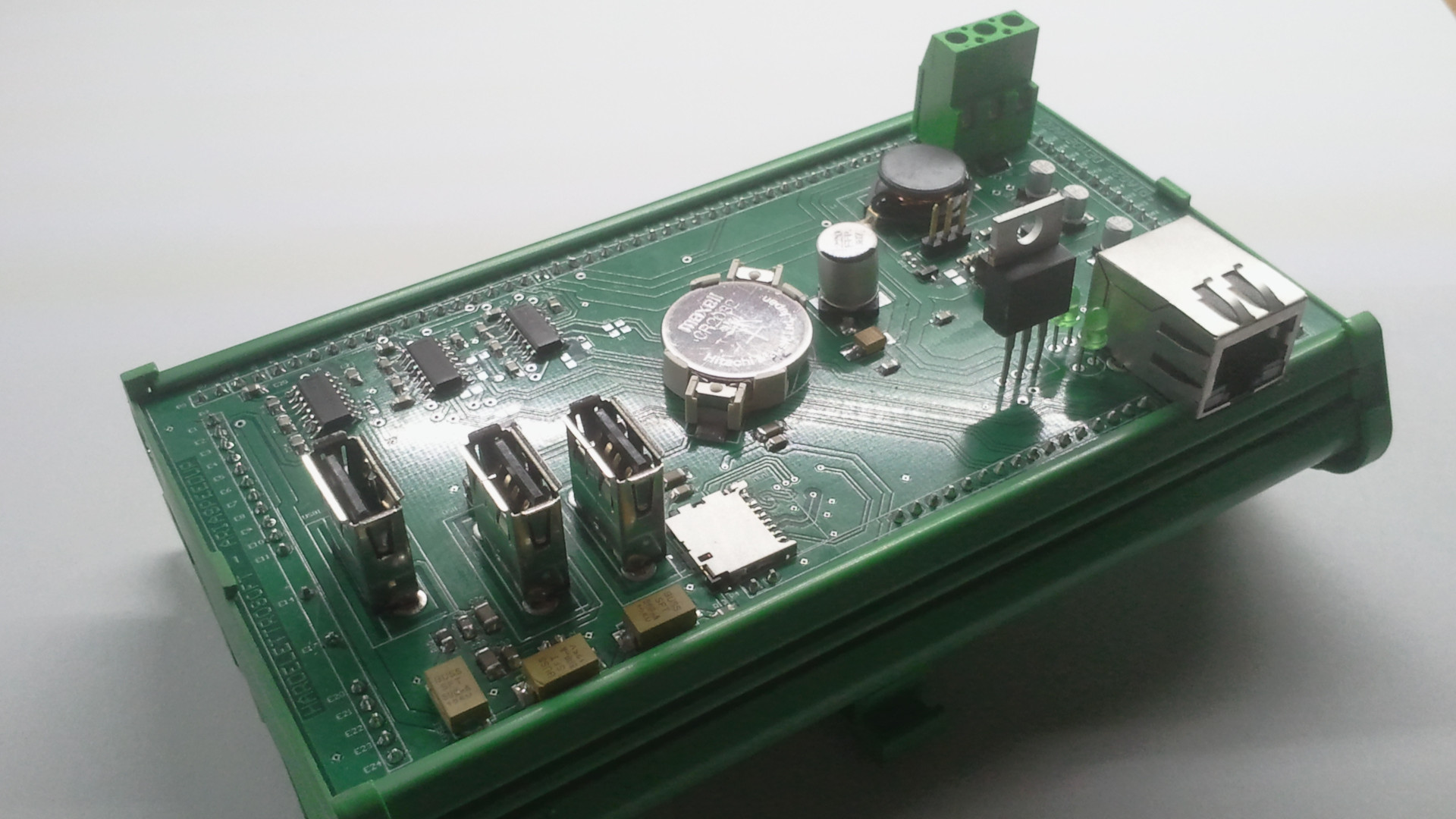

After several tests and ideas with various prototypes, I created the finished product you see here in the picture. It allows access to all AriaG25 pins, 3 USB 1 ports, RTC and micro SD memory for the Linux operating system. Download AriaSpeedUp schematic.
